indoor or outdoor epoxy resin Silicone Rubber combined transformers price

FOB Reference Price:Get Latest Price
  • >=3 Pieces
    $600.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SH
Model Number:
JLSGW1-10 A
Usage:
Power
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
optional
Product name:
Three Phase combined Transformer
Certification:
ISO14001 ISO9001
Type:
Dry-type
Frequency:
50Hz/60Hz
Standard:
IEC61869/ICE60044/IEEE/ANSI
Rated capacity:
500
Rated voltage:
10/0.4
Material:
silicone rubber
Output Voltage:
400V
Winding material:
Copper100%
Supply Ability
Supply Ability:
72000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Goods are packed in wooden cases, with foam inside for protection. And we have a team who is in charge of packing. The team consists of our skilful carpenters and experienced packing designers. These enable our packing reasonable, safe and reliable.
Port
Guangzhou Shenzhen

Indoor or outdoor epoxy resin Silicone Rubber combined transformers

Application

JLSGW1-10A this combined instrument transformer is for use with electrical measuring instruments and electrical protective devices. It consists of two current transformers and two voltage transformers in the same case.

Our combined instrument transformer is especially suitable for HV metering, to do so, two voltage transformers shall be connected in V type, while two current transformers connect serially to phase A and C. The instrument transformer can be fixed on the post of transmitting line. The secondary output connects directly to an independent HV metering box. Users can choose certain connection in accordance with different conditions.

Main Technical Parameters

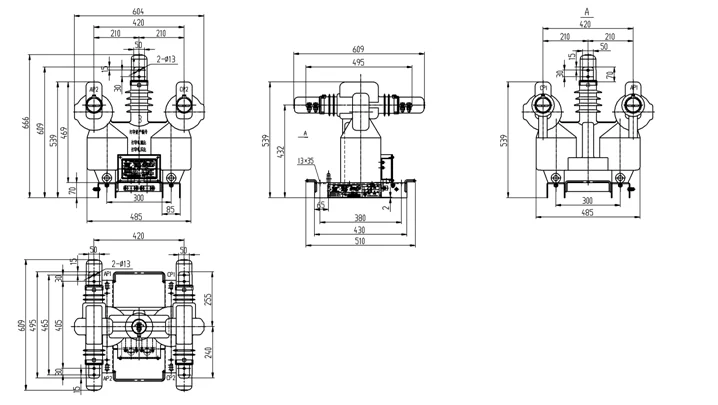

Outline drawing and installation dimensions

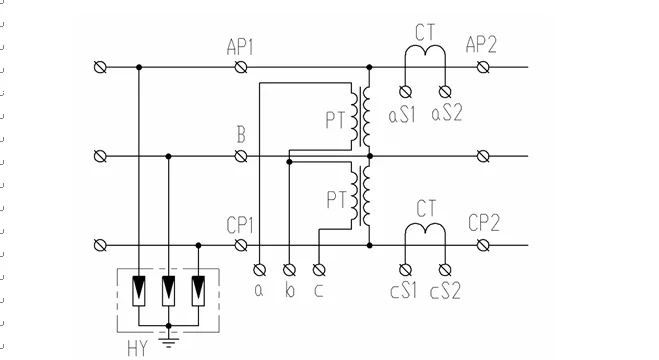

Electrical Schematic Diagram
