SF6 gas insulation combined current transformers voltage transformers price

FOB Reference Price:Get Latest Price
  • 3 - 5 Sets
    $25,000.00
  • >=6 Sets
    $15,000.00
Customization:
Customized logo (Min. Order: 6 Sets)
Customized packaging (Min. Order: 6 Sets)

More

Graphic customization (Min. Order: 6 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SH
Model Number:
JLDQ-550
Usage:
Power
Phase:
Single
Coil Structure:
Toroidal
Coil Number:
optional
Product name:
SF6 gas single phase rransformer
Certification:
ISO14001 ISO9001
Type:
gas
Frequency:
50Hz/60Hz
Rated voltage:
550kV
Standard:
IEC61869/ICE60044/IEEE/ANSI
Core material:
CRGO Sillicon Steel Core
Application:
Power Grid System
Cooling Method:
Natural Air Cooling
Winding material:
Copper 100%
Supply Ability
Supply Ability:
7200 Set/Sets per Year
Packaging & Delivery
Packaging Details
Goods are packed in wooden cases, with foam inside for protection. And we have a team who is in charge of packing. The team consists of our skilful carpenters and experienced packing designers. These enable our packing reasonable, safe and reliable.
Port
Guangzhou, Shenzhen

SF6 gas insulated Combined transformers

Instruction

The combined transformers combinate the characters of inductive voltage transformer and inductive current transformer, and it also has the function of current transformer and voltage transformer. The insulation material is SF6 gas. The bushing of the instrument transformer is made by silicon rubber or porcelain

The combined instrument transformer shall be suitable for measurement control and relay protection in the outdoor AC power system of nominal voltage 72.5~550kV, and frequency of 50 or 60Hz.

Service Conditions

a. Ambient air temperature: maximum 40℃, minimum -40℃, average value of the ambient air temperature does not exceed 30℃ measured during a period of 24h.

b. Altitude: The altitude does not exceed 1000m (this is the routine requirement, if there is any different requirement, we can provide the products with 2000m, 3000m, 4000m or 5000m altitude according to the clients’ requirements)

c. The average value of the relative humidity does not exceed 95% at 25℃ measured during a period of one month

d. The maximum wind speed does not exceed 34m/s

e. Earthquake intensity does not exceed 8 degree

f. There have to be no gas that may seriously affect the insulation and conductive ability of electric equipments, steam, ash, salt, chemical deposit, pollution and corrosive or explosive material.

Main Technical Parameters

Rate voltage( kV)

72.5

126

145

170

252

363

420

550

power-frequency withstand voltage (r.m.s) (kV)

140

230

275

325

460

510

630

680

Rated lightning impulse withstand voltage (peak) (kV)

325

550

650

750

1050

1175

1425



1550

Rated switching impulse withstand voltage (peak) (kV)

-

-

-

-

-



950



1050



1175

Rated frequency( Hz)

50/60

Creepage distance    mm/kV

25~31 or more

Insulation level

E

Ambient air temperature

-30/+50 (special design is available of -60℃)

Current transformer part

Rated current( A)

100A ~ 4000A

Rated secondary current  (A)

1A, 5A or others

Accuracy class

0.2S,0.5S,5P,10P,PX,PR,TPX,TPY,TPZ or others

Voltage transformer part

Rated primary voltage (kV)

66/v3,110/3,132/3,150/3,2203,330/3,3803 or 500/3

Rated secondary voltage

100/3,100 or others

Rated Voltage factor

1.5/30s,1.9/8h or others

Accuracy class

0.2,0.5,3P,6P or others

  Standard: GB 20840.1,GB 20840.2,GB 20840.3 IEC 61869-1,IEC 61869-2,IEC 61869-3,ANSI C57.13

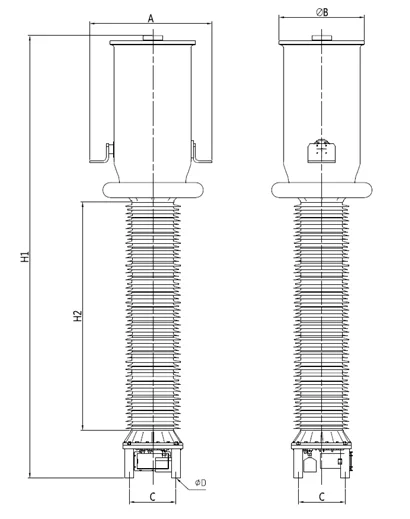

Outline Dimensions Drawing and Structure

Figure 1

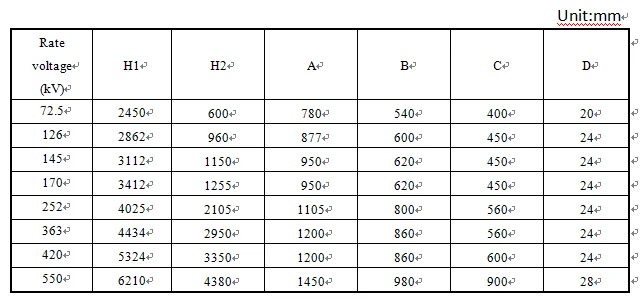

Table 1

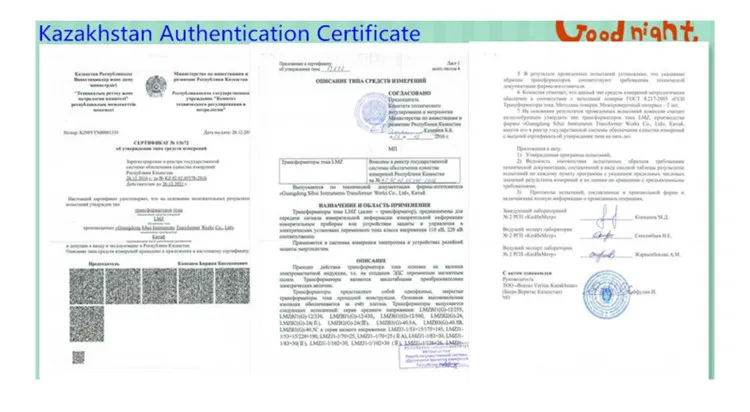

Certificate of Honor

Our partners
